Excavator Swing Motor Assy For E325B Swing Device Assy 121-1564 Parts Of Excavator
| |
| Model: E325B | egory: Excavator Swing Motor Assy |
| Brand: TGFQ | Part Number: 121-1564 / 118-4109 |
| Outer Packing: Wooden case | Motor: M2X150 |
| Delivery Time: 1-3 days (after receive the payment) | Means of Transport: By Sea, By Air or By Express |
| Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping. |
What motors are used in excavators?
Hydraulic motors
Hydraulic motors are commonly seen in earthmoving equipment like excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, bulldozers etc where hydraulic cylinders extend and retract as vital operational parts while the machine performs various
How does excavator swing brake work?
The swing brake is a multi-disc and plate assembly loed in the first stage planetary gear assembly. It is spring applied and hydraulically released. The brake is designed as a parking brake only and is not intended to be used as a cyclic service brake. The discs and plates are lubried by the release signal oil.
E325B Picture Of Swing Motor:

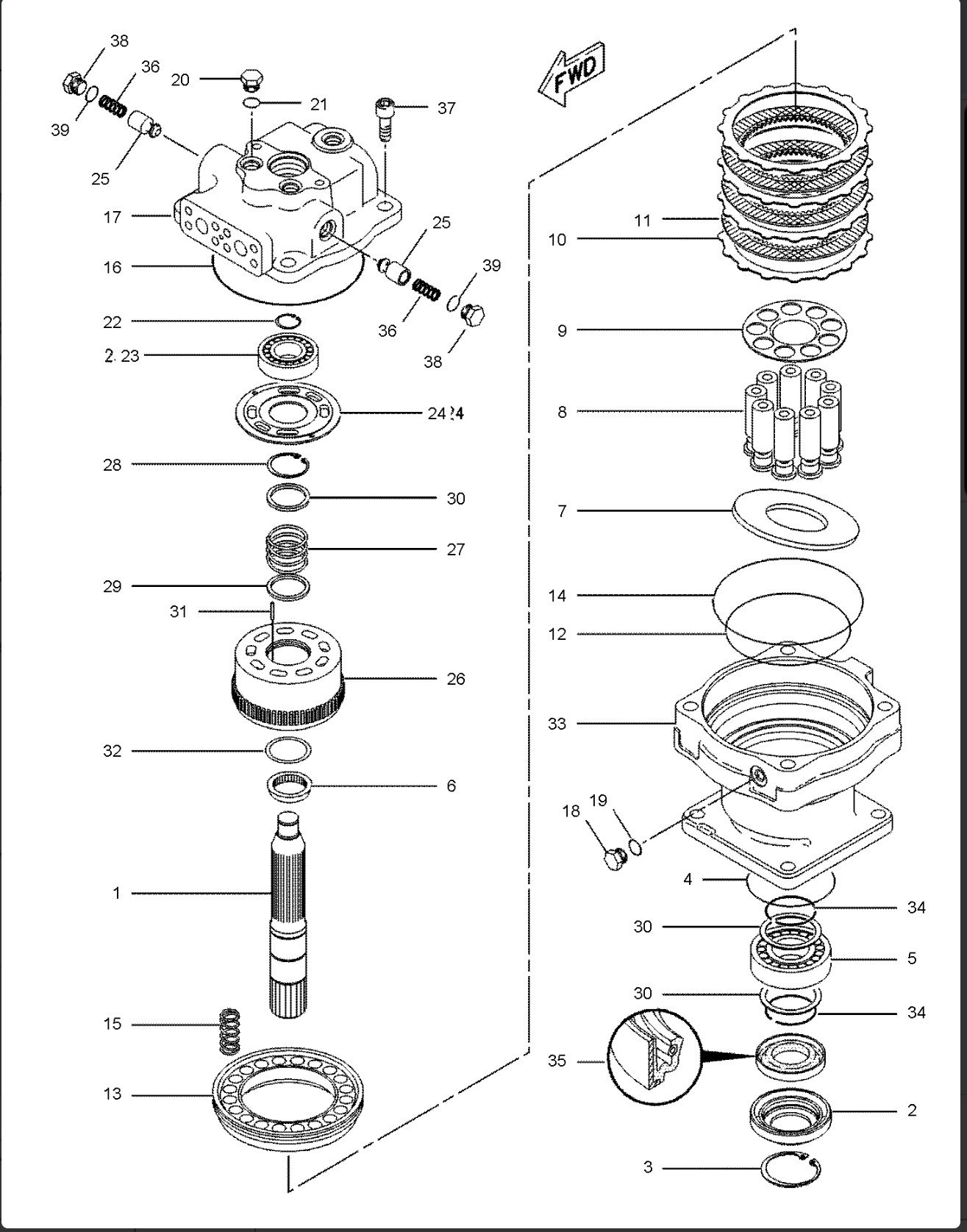

E325B Drawing Of Swing Motor
| Pos. | Part No | Qty | Parts Name |
| 1 | 7Y-4251 | [1] | SHAFT-DRIVE |
| 2 | 7Y-4266 | [1] | RETAINER |
| 3 | 6V-5203 | [1] | RING-RETAINING |
| 4 | 095-1714 | [1] | SEAL-O-RING |
| 5 | 7Y-4270 | [1] | BEARING AS-ROLLER |
| 6 | 7Y-4254 | [1] | BUSHING-TERMINAL |
| 7 | 7Y-4262 | [1] | PLATE |
| 8 | 4I-6448 | [1] | PISTON AS |
| 9 | 7Y-4261 | [1] | PLATE |
| 10 | 7Y-4293 | [4] | PLATE |
| 11 | 7Y-4292 | [3] | PLATE-FRICTION |
| 12 | 5J-2383 | [1] | SEAL-O-RING |
| 13 | 7Y-4290 | [1] | PISTON-BRAKE |
| 14 | 7Y-4294 | [1] | SEAL-O-RING |
| 15 | 123-2139 | [18] | SPRING |
| 16 | 4I-5849 | [1] | SEAL-O-RING |
| 17 | 121-1567 Y | [1] | HEAD GP-SWING MOTOR |
| 18 | 7Y-4274 | [1] | PLUG |
| 19 | 095-1579 | [1] | SEAL-O-RING |
| 20 | 9S-4191 | [2] | PLUG (9/16-18-THD) |
| 21 | 3J-1907 | [2] | SEAL-O-RING |
| 22 | 6V-8754 | [1] | RING-RETAINING |
| 23 | 7Y-4269 | [1] | BEARING AS-ROLLER |
| 24 | 4I-7787 | [1] | PLATE |
| 25 | 7Y-4267 | [2] | VALVE |
| 26 | 111-1116 | [1] | BARREL |
| 27 | 7Y-4255 | [1] | SPRING |
| 28 | 095-0939 | [1] | RING-RETAINING |
| 29 | 7Y-4258 | [1] | SPACER (45.35X57X3-MM THK) |
| 30 | 7Y-4252 | [3] | SPACER (45.1X57X3-MM THK) |
| 31 | 7Y-4256 | [12] | PIN |
| 32 | 7Y-4257 | [1] | SPACER (43X54X1.5-MM THK) |
| 33 | 111-1115 | [1] | BODY |
| 34 | 6V-5204 | [2] | RING-RETAINING |
| 35 | 096-1533 | [1] | SEAL-LIP TYPE |
| 36 | 7Y-4268 | [2] | SPRING |
| 37 | 7Y-5221 M | [4] | BOLT-SOCKET HEAD (M20X2.5X45-MM) |
| 38 | 094-1900 | [2] | PLUG |
| 39 | 095-1595 | [2] | SEAL-O-RING |
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.
FAQ:
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
Product Tags:
|
|
121-1564 Excavator Swing Motor Assy For E325B Swing Device Assy Images
|
